Description

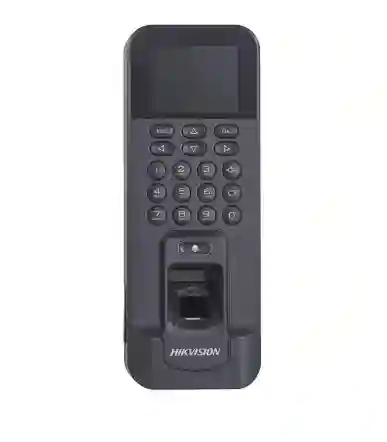

Fingerprint Access Control & Time Attendance
The DS-K1T804AMF provides two important functions in one terminal: secure access control and employee time attendance.
Employees can authenticate using their registered fingerprint or MIFARE card. The terminal records attendance and access events, making it suitable for organizations looking to improve workplace security and automate employee attendance monitoring.
Multiple Authentication Options
The terminal supports:
Fingerprint Authentication
Employees can use their registered fingerprint for secure and convenient identification.
MIFARE Card Authentication
The integrated MIFARE 1 card reader allows employees to authenticate using compatible proximity cards.
The fingerprint module supports both 1:1 and 1 comparison modes, with a fingerprint recognition time of less than one second according to the manufacturer’s specifications.
Network Connectivity
The DS-K1T804AMF can connect to your access control or attendance management environment using TCP/IP or Wi-Fi.
This makes it suitable for both standalone installations and networked deployments, where you can centrally manage multiple terminals.
Access Control Interfaces
The terminal includes interfaces required for connecting to a complete door access control system:
- Lock control
- Exit button
- Door contact
- Wiegand
- RS-485
- Alarm input
- Alarm output
- Tamper
- Network interface
- USB
This provides flexibility when integrating the terminal with door locks, exit buttons, door sensors and other access control components.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS-K1T804AMF |
| Series | K1T804A Pro Series |
| Application | Access Control & Time Attendance |
| Authentication | Fingerprint, MIFARE Card |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Event Capacity | 100,000 |
| Fingerprint Module | Optical |
| Fingerprint Matching | 1:1 / 1 |
| Fingerprint Recognition Time | < 1 second |
| Card Type | MIFARE 1 |
| Card Reading Distance | 0–4.5 cm |
| Card Reading Time | < 1 second |
| Display | 2.4-inch LCD-TFT |
| Display Resolution | 320 × 240 |
| Network | TCP/IP 10/100 Mbps |
| Wi-Fi | Supported |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock Control | 1 |
| Exit Button Input | 1 |
| Door Contact Input | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Tamper | 1 |
| USB | 1 |
| Power Supply | 12 VDC / 1 A |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90%, non-condensing |
| Dimensions | 205 × 76.5 × 37 mm |
| Installation | Surface mounting |
| Color | Black |
Specifications are based on the manufacturer’s published datasheet.
Applications
The Hikvision DS-K1T804AMF is suitable for:
- Corporate offices
- Small and large businesses
- Warehouses
- Factories and manufacturing facilities
- Schools and educational institutions
- Hotels
- Hospitals and healthcare facilities
- Construction sites
- Government offices
- Retail stores
- Commercial buildings
- Staff accommodation
- Industrial facilities
Why Choose TACS Africa?
TACS Africa provides access control, biometric attendance, and security technology solutions for organizations across Africa.
We can supply and support the Hikvision DS-K1T804AMF as part of a complete biometric access control or employee attendance solution, including terminal installation, door lock integration, configuration, and system setup.
Complete Access Control Solutions
TACS Africa can help with:
- Fingerprint access control systems
- Biometric time attendance systems
- Door access control
- RFID and card-based access
- Employee attendance management
- Access control software
- Door lock integration
- Network configuration
- System installation and commissioning
- Technical support
Order Hikvision DS-K1T804AMF
Looking for a reliable Hikvision fingerprint access control and time attendance terminal in Africa?
Contact TACS Africa for product availability, pricing, installation and complete biometric access control solutions.
Request a Quote Today
Get the Hikvision DS-K1T804AMF for your business and improve employee attendance management and building access security.
Frequently Asked Questions
1. What is the Hikvision DS-K1T804AMF?
The DS-K1T804AMF is a K1T804A Pro Series fingerprint terminal that combines access control and time attendance functions.
2. How many fingerprints can it store?
The terminal supports up to 3,000 fingerprints.
3. Does the DS-K1T804AMF support cards?
Yes. It has a built-in MIFARE 1 card reader and supports up to 3,000 cards.
4. How many events can it store?
The terminal supports up to 100,000 events.
5. Does it support Wi-Fi?
Yes. The manufacturer’s specifications list Wi-Fi support in addition to TCP/IP network communication.
6. Can it control a door lock?
Yes. It includes a lock-control interface as well as exit-button and door-contact inputs.
7. Can it be used for employee attendance?
Yes. The DS-K1T804AMF is designed to provide integrated access control and time attendance functionality.
8. Is installation available from TACS Africa?
TACS Africa can provide supply, configuration and installation support depending on the project location and requirements.
